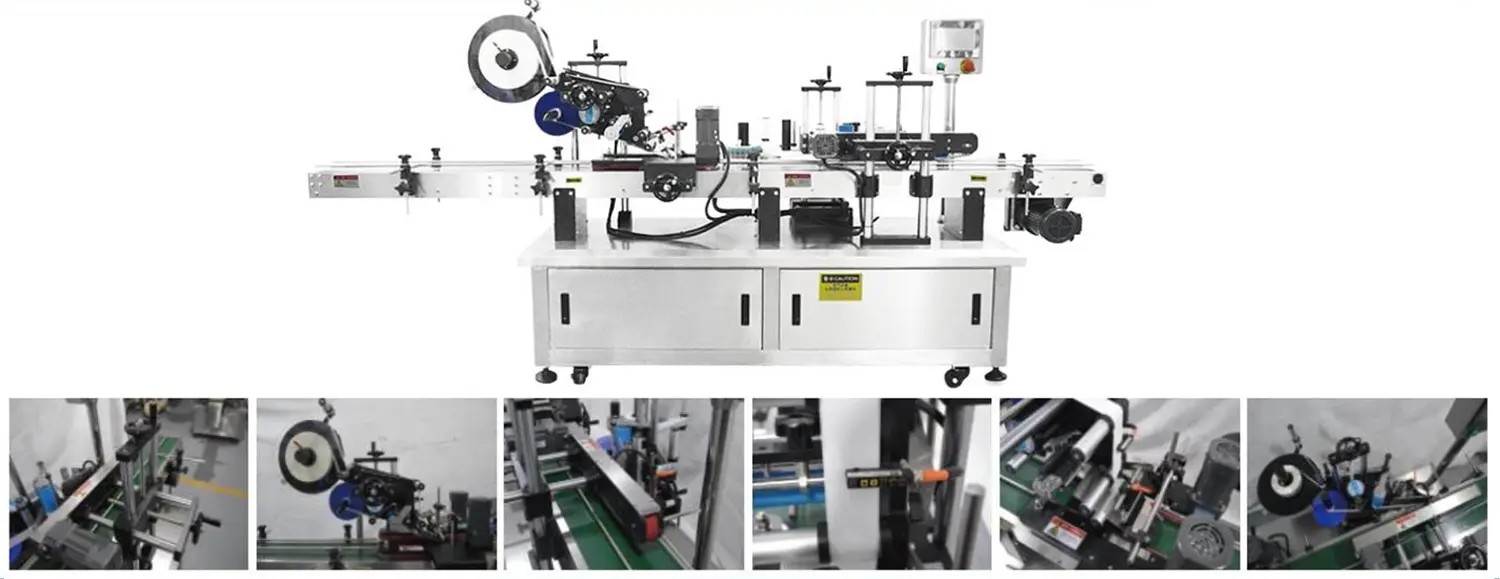

THREE SIDES LABELLING MACHINE
APPLICATION
Automatic self-adhesive three-sides labeling machine is non-standard to customize,can achieve a multi-purpose function.The machine can be used in a wide range of products.Can be used to labelflank, top surface, one side and three sides of a variety of products, singleor multiple label heads can be used to set the parameters in the operating interface. The machine can replace various labeling machines.
parameters
Model |
MT-320
|
|
Labeling speed
|
10-40 meters/min |
|
Labeling accuracy
|
±1mm
|
|
Max label width
|
120mm (width can be increased as needed/can be customized) |
Applicable product size |
30-80mm (width can be increased as needed/can be customized)
|
|
Applicable inner diameter of paper
|
φ76mm
|
Applicable outer diameter of paper |
Maxφ330mm/Maxφ330mm |
|
Air source
|
4-6KG 30L/min
|
|
Dimension
|
3000*800*1500mm
|
|
Voltage
|
220V 50Hz 2000W
|
|
Weight
|
300KG
|
After the independent establishment of the factory so far, the R & D team of 10 people, assembly workers, machining, pre-sales and after-sales service personnel a total of more than 40 people, with 5000 square meters of processing workshop, assembly workshop, laboratory, R & D department, manufacturing assembly department, after-sales service department, sales department and other departments, automation equipment throughout the country, exported to overseas, accumulated rich industry experience.Thank you for your trust and support of our products, we will be happy to provide you with the best quality service and products.
